Minimum Bend Radius For Sheet Metal Parts

It is most economical to use a single bend radius throughout the design but if necessary you can utilize multiple radii.

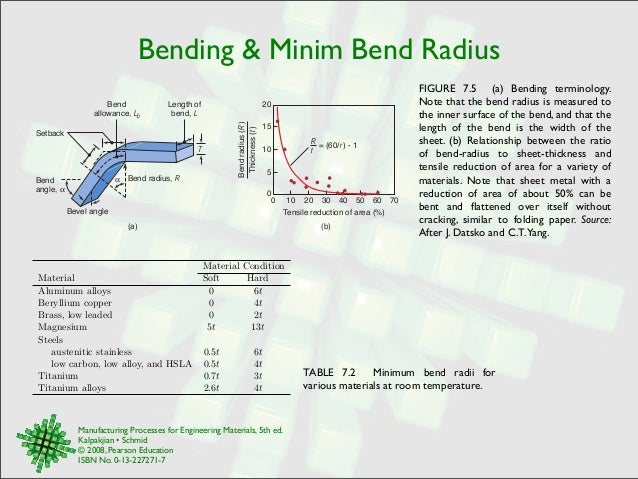

Minimum bend radius for sheet metal parts.

Bend radii and minimum bends are limited to certain values or ranges which are determined by the equipment and tooling combinations available to the manufacturer. Hi can anyone tell me what the minimum bend radius for ss probably 303 304 and 6061 t6 al is. Each and every bend in a piece of sheet metal has a certain minimum internal radius that needs to be taken into account when planning the design of a sheet metal form. Recommended inside bend radius for sheet metal parts should be equal to material thickness.

A 1 degree tolerance on all bend angles. I ve seen a few things online suggesting 1 5 x material thickness. Now we take the height of arc value for our new bend angle and we plug it into the following formula. Bend radii minimum bend sizes.

Below is xometry s minimum bend radius reference table which is based on. Usually the preferred distance between holes and a bend is 1 5 times the sheet thickness plus the bend radius 1 5t h. When designing parts for laser cutting one should not make holes smaller than the thickness of the material. For bent sheet metal variation in the raw material thickness increases the recommended precision to 0 010 in.

Height of arc outside bend radius. Minimum bend radius for sheet metal parts. Use this document to choose values that are both manufacturable and meet your needs. But for harder materials e g.

Thus the smallest radius of any bend in a sheet should be at least equal to the thickness of the sheet. We recommend a minimum bend radius of 1t for all sheet metal parts. When designing sheet metal parts and enclosures it is helpful to use these values as the basis for your design. Supplying 3d models without considering these factors increases the chance.

For example if the thickness of the sheet is 1 mm the minimum bend radius should be 1 mm. Bend radii minimum bend sizes. Layout method sheet metal stretches when it bends is an oversimplification. The problem with bending too tightly.

Height of arc 2 material thickness 2 inside radius 0 201 2 0 01562 inside bend radius 0 201 0 031 0 170 in. Bends in sheet metal are manufactured using sheet metal brakes. Crca inside bend radius equal to 0 65 times of sheet thickness is also enough. Sheet metal parts with a minimum of 0 9mm to 20mm in thickness can be manufactured.
